 [Chapter 3]

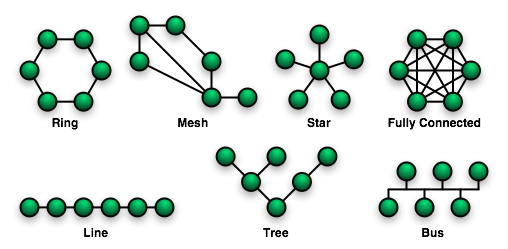

 Topologies:

 Mesh Topologies:

 Mesh network is the way to root data, wise and instructions between nodes. It allows for continues connection and reconfiguration around broken or blocked by hoping node to node until the destination is reached. A Mesh network nodes are all connected to each other is a fully connected to the network. Mesh networks differ from other networks in that the component parts can all connect to each other via multiple hops, and they generally are not mobile. Mesh network can be seen as one type of ad hoc network. Mobile and ad hoc networks (MANET’S) and Mesh networks are there for closely related but MANET’S also have to bail with the problems introduced by the mobility of the nodes.

Mesh network are self heeling that the network can still operate even when a node brakes down or a connection goes bad. As a result a very reliable network is formed. This concept is applicable for wire less network, wired network and software interaction.

Wireless Mesh network is most topical network of Mesh architecture wireless Mesh was originally developed for military applications but has undergone significant evolution in the past decade. As the cost of radios plummeted, signals radio products evolved to support more radios per mesh node with the additional radios providing specific function such as client access back hall server or scanning radios for high speed hand over in modality applications. The Mesh node design also become more modular that one box could support multiple radio card each operating at a different frequency.
